Chapter 5

# Install and load packages ---------------
packages <- c(
  "tidyverse",
  "forcats",
  "latex2exp",
  "grid",
  "gridExtra",
  "scales",
  "haven",
  "kableExtra",
  "magrittr"
)

# Change to install = TRUE to install the required packages
pacman::p_load(packages, character.only = TRUE)

Nt <- 1000
Nc <- 1000
N <- Nt + Nc

K <- 1000
B <- 100

get_permutated_diff <- function(i, random_permutation, Y_obs, multiplicative = FALSE) {
  random_permutation_i <- random_permutation %>% pull(i)

  permutated_diff_1 <- abs(mean(Y_obs[random_permutation_i]) - mean(Y_obs[-random_permutation_i]))
  permutated_diff_2 <- abs(median(Y_obs[random_permutation_i]) - median(Y_obs[-random_permutation_i]))
  permutated_diff_3 <- abs(mean(rank(Y_obs)[random_permutation_i]) - mean(rank(Y_obs)[-random_permutation_i]))
  if (multiplicative == FALSE) {
    return(c(permutated_diff_1, permutated_diff_2, permutated_diff_3))
  } else {
    permutated_diff_4 <- abs(mean(log(Y_obs)[random_permutation_i]) - mean(log(Y_obs)[-random_permutation_i]))
    return(c(permutated_diff_1, permutated_diff_2, permutated_diff_3, permutated_diff_4))
  }
}

tau_seq <- seq(0, 0.2, by = 0.005)

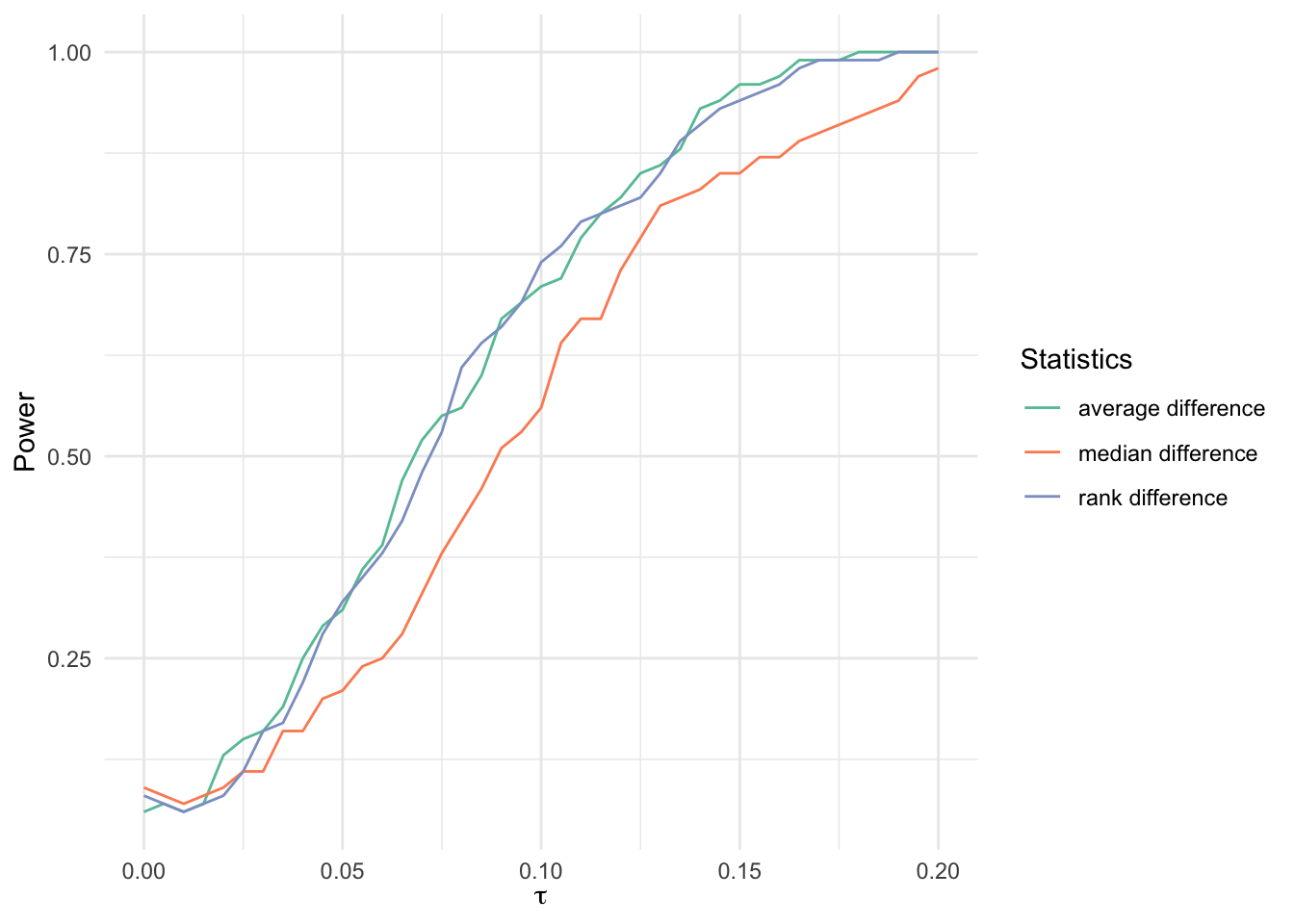

Additive model with normal outcomes

p_lt_10_mat_1_normal <- matrix(0, nrow = B, ncol = length(tau_seq))
p_lt_10_mat_2_normal <- matrix(0, nrow = B, ncol = length(tau_seq))
p_lt_10_mat_3_normal <- matrix(0, nrow = B, ncol = length(tau_seq))

for (b in seq(B)) {

  set.seed(b)

  # Actual assignment in a trial b
  actual_treatment = sample(N, Nt, replace = FALSE)
  # Distribution of potential outcomes
  Y0 <- rnorm(N)
  # Random permutation rules
  random_permutation <- map(seq(K), ~ sample(N, Nt, replace = FALSE)) %>% bind_cols()

  p_lt_10_vec_1 <- rep(0, length(tau_seq))
  p_lt_10_vec_2 <- rep(0, length(tau_seq))
  p_lt_10_vec_3 <- rep(0, length(tau_seq))

  for (i in seq_along(tau_seq)) {

    Y_obs <- Y0
    Y_obs[actual_treatment] <- Y0[actual_treatment] + tau_seq[i]

    permutated_diff <- map(seq(K), ~ get_permutated_diff(., random_permutation, Y_obs)) %>% bind_cols()

    actual_diff_1 <- abs(mean(Y_obs[actual_treatment]) - mean(Y_obs[-actual_treatment]))
    actual_diff_2 <- abs(median(Y_obs[actual_treatment]) - median(Y_obs[-actual_treatment]))
    actual_diff_3 <- abs(mean(rank(Y_obs)[actual_treatment]) - mean(rank(Y_obs)[-actual_treatment]))

    p_lt_10_vec_1[i] <- (mean(permutated_diff[1, ] >= actual_diff_1) < 0.10)
    p_lt_10_vec_2[i] <- (mean(permutated_diff[2, ] >= actual_diff_2) < 0.10)
    p_lt_10_vec_3[i] <- (mean(permutated_diff[3, ] >= actual_diff_3) < 0.10)

    p_lt_10_mat_1_normal[b, ] <- p_lt_10_vec_1
    p_lt_10_mat_2_normal[b, ] <- p_lt_10_vec_2
    p_lt_10_mat_3_normal[b, ] <- p_lt_10_vec_3

  }

}

bind_rows(
  tibble(x = tau_seq, y = colMeans(p_lt_10_mat_1_normal), z = 1),
  tibble(x = tau_seq, y = colMeans(p_lt_10_mat_2_normal), z = 2),
  tibble(x = tau_seq, y = colMeans(p_lt_10_mat_3_normal), z = 3),
  ) %>%
  ggplot(aes(x = x, y = y, color = factor(z))) +
    geom_line() +
    scale_color_brewer(
      palette = "Set2",
      name = "Statistics",
      labels = c(
        "average difference",
        "median difference",
        "rank difference"
      )
    ) +
  xlab(TeX("$\\tau$")) +
  ylab(TeX("Power")) +
  theme_minimal()

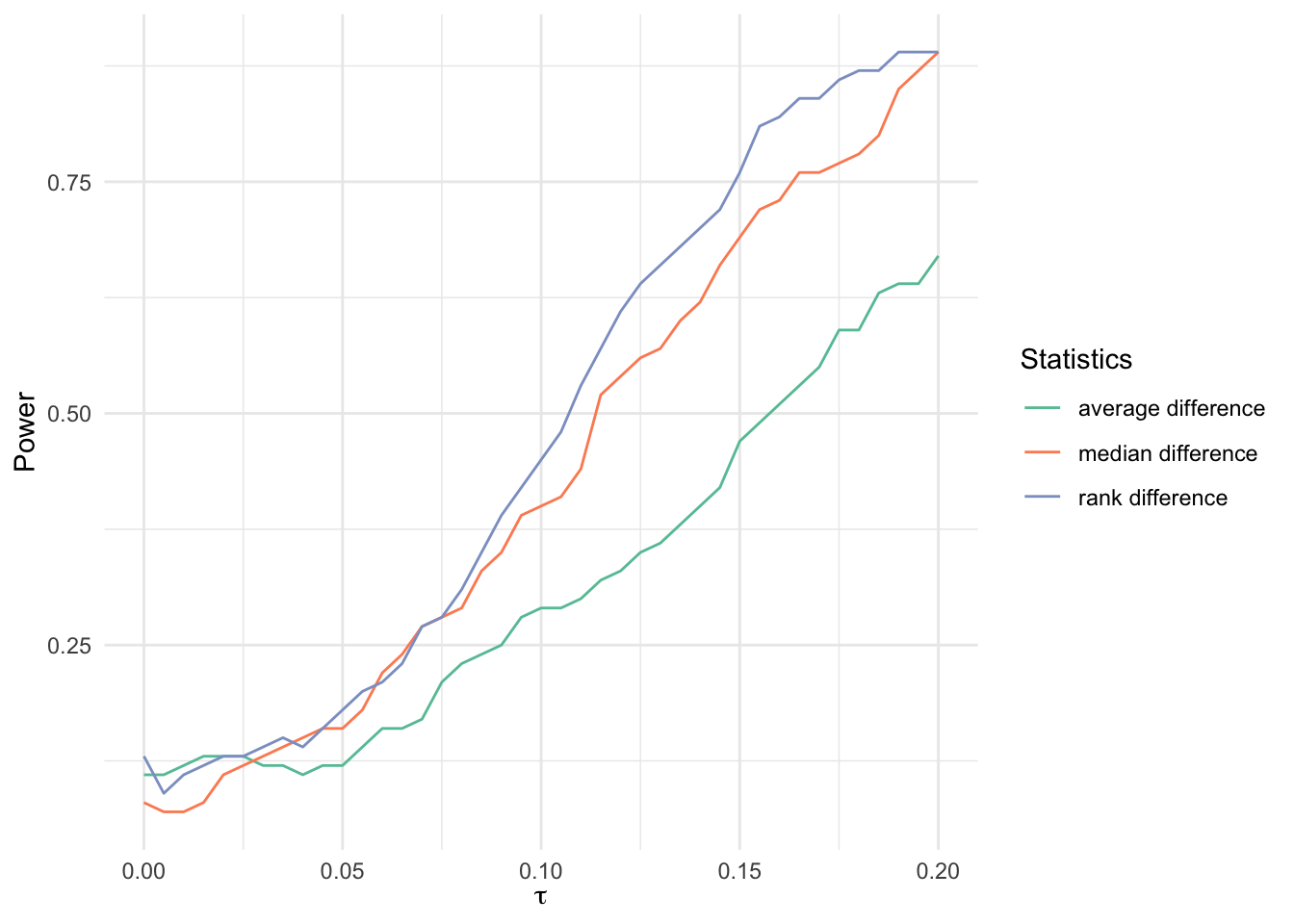

Additive model with outliers

p_lt_10_mat_1_outlier <- matrix(0, nrow = B, ncol = length(tau_seq))
p_lt_10_mat_2_outlier <- matrix(0, nrow = B, ncol = length(tau_seq))
p_lt_10_mat_3_outlier <- matrix(0, nrow = B, ncol = length(tau_seq))

for (b in seq(B)) {

  set.seed(b)

  # Actual assignment in a trial b
  actual_treatment = sample(N, Nt, replace = FALSE)
  # Distribution of potential outcomes
  Y0 <- rnorm(N) + rbinom(N, 1, 0.2) * 5
  # Random permutation rules
  random_permutation <- map(seq(K), ~ sample(N, Nt, replace = FALSE)) %>% bind_cols()

  p_lt_10_vec_1 <- rep(0, length(tau_seq))
  p_lt_10_vec_2 <- rep(0, length(tau_seq))
  p_lt_10_vec_3 <- rep(0, length(tau_seq))

  for (i in seq_along(tau_seq)) {

    Y_obs <- Y0
    Y_obs[actual_treatment] <- Y0[actual_treatment] + tau_seq[i]

    permutated_diff <- map(
      seq(K), ~ get_permutated_diff(., random_permutation, Y_obs)
      ) %>%
      bind_cols()

    actual_diff_1 <- abs(mean(Y_obs[actual_treatment]) - mean(Y_obs[-actual_treatment]))
    actual_diff_2 <- abs(median(Y_obs[actual_treatment]) - median(Y_obs[-actual_treatment]))
    actual_diff_3 <- abs(mean(rank(Y_obs)[actual_treatment]) - mean(rank(Y_obs)[-actual_treatment]))

    p_lt_10_vec_1[i] <- (mean(permutated_diff[1, ] >= actual_diff_1) < 0.10)
    p_lt_10_vec_2[i] <- (mean(permutated_diff[2, ] >= actual_diff_2) < 0.10)
    p_lt_10_vec_3[i] <- (mean(permutated_diff[3, ] >= actual_diff_3) < 0.10)

    p_lt_10_mat_1_outlier[b, ] <- p_lt_10_vec_1
    p_lt_10_mat_2_outlier[b, ] <- p_lt_10_vec_2
    p_lt_10_mat_3_outlier[b, ] <- p_lt_10_vec_3

  }

}

bind_rows(
  tibble(x = tau_seq, y = colMeans(p_lt_10_mat_1_outlier), z = 1),
  tibble(x = tau_seq, y = colMeans(p_lt_10_mat_2_outlier), z = 2),
  tibble(x = tau_seq, y = colMeans(p_lt_10_mat_3_outlier), z = 3),
  ) %>%
  ggplot(aes(x = x, y = y, color = factor(z))) +
    geom_line() +
    scale_color_brewer(
      palette = "Set2",
      name = "Statistics",
      labels = c(
        "average difference",
        "median difference",
        "rank difference"
      )
    ) +
  xlab(TeX("$\\tau$")) +
  ylab(TeX("Power")) +
  theme_minimal()

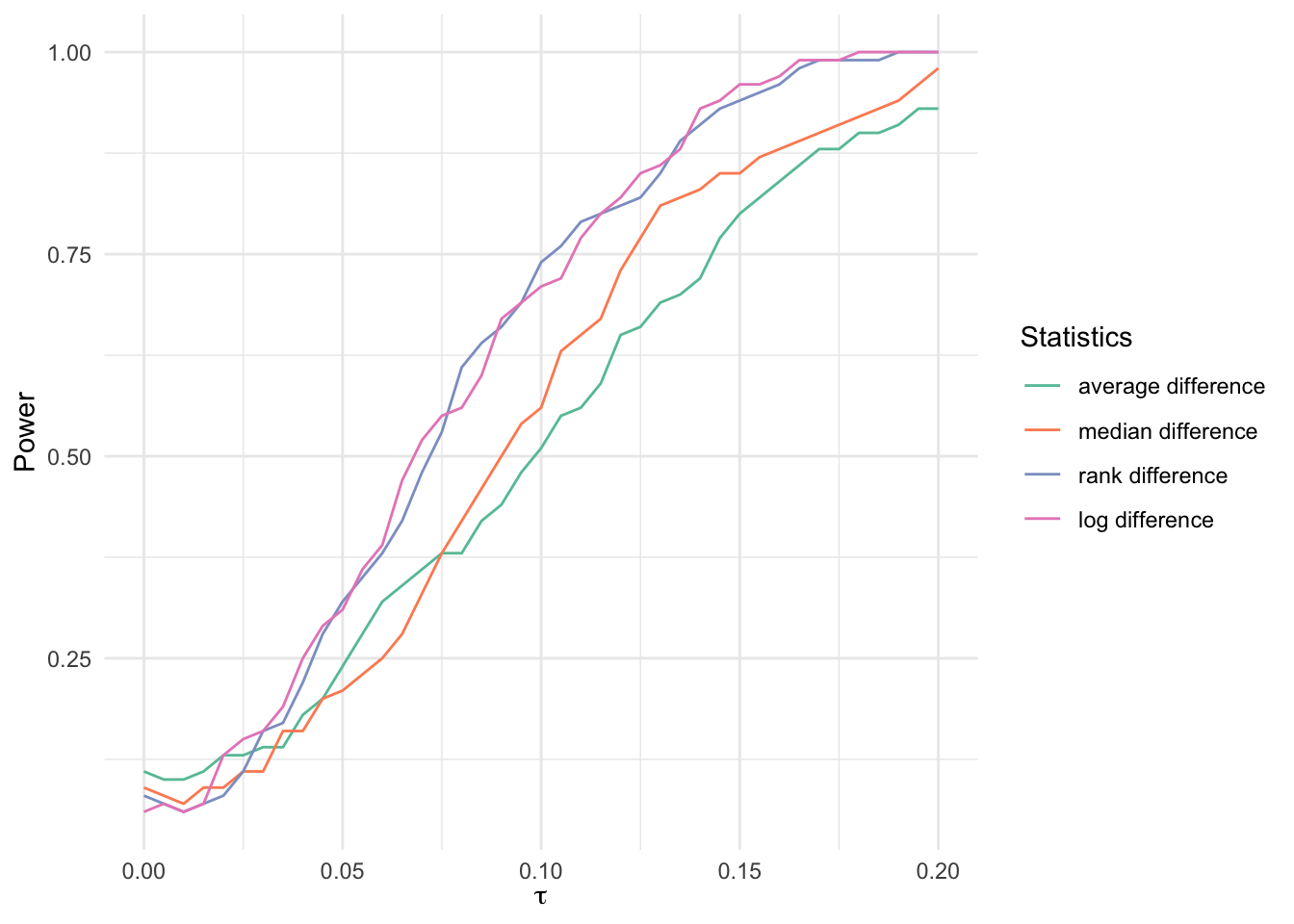

Multiplicative model

p_lt_10_mat_1_multiplicative <- matrix(0, nrow = B, ncol = length(tau_seq))
p_lt_10_mat_2_multiplicative <- matrix(0, nrow = B, ncol = length(tau_seq))
p_lt_10_mat_3_multiplicative <- matrix(0, nrow = B, ncol = length(tau_seq))
p_lt_10_mat_4_multiplicative <- matrix(0, nrow = B, ncol = length(tau_seq))

for (b in seq(B)) {

  set.seed(b)

  # Actual assignment in a trial b
  actual_treatment = sample(N, Nt, replace = FALSE)
  # Distribution of potential outcomes
  Y0 <- exp(rnorm(N))
  # Random permutation rules
  random_permutation <- map(seq(K), ~ sample(N, Nt, replace = FALSE)) %>% bind_cols()

  p_lt_10_vec_1 <- rep(0, length(tau_seq))
  p_lt_10_vec_2 <- rep(0, length(tau_seq))
  p_lt_10_vec_3 <- rep(0, length(tau_seq))
  p_lt_10_vec_4 <- rep(0, length(tau_seq))

  for (i in seq_along(tau_seq)) {

    Y_obs <- Y0
    Y_obs[actual_treatment] <- Y0[actual_treatment] * exp(tau_seq[i])

    permutated_diff <- map(
      seq(K), ~ get_permutated_diff(., random_permutation, Y_obs, multiplicative = TRUE)
      ) %>%
      bind_cols()

    actual_diff_1 <- abs(mean(Y_obs[actual_treatment]) - mean(Y_obs[-actual_treatment]))
    actual_diff_2 <- abs(median(Y_obs[actual_treatment]) - median(Y_obs[-actual_treatment]))
    actual_diff_3 <- abs(mean(rank(Y_obs)[actual_treatment]) - mean(rank(Y_obs)[-actual_treatment]))
    actual_diff_4 <- abs(mean(log(Y_obs)[actual_treatment]) - mean(log(Y_obs)[-actual_treatment]))

    p_lt_10_vec_1[i] <- (mean(permutated_diff[1, ] >= actual_diff_1) < 0.10)
    p_lt_10_vec_2[i] <- (mean(permutated_diff[2, ] >= actual_diff_2) < 0.10)
    p_lt_10_vec_3[i] <- (mean(permutated_diff[3, ] >= actual_diff_3) < 0.10)
    p_lt_10_vec_4[i] <- (mean(permutated_diff[4, ] >= actual_diff_4) < 0.10)

    p_lt_10_mat_1_multiplicative[b, ] <- p_lt_10_vec_1
    p_lt_10_mat_2_multiplicative[b, ] <- p_lt_10_vec_2
    p_lt_10_mat_3_multiplicative[b, ] <- p_lt_10_vec_3
    p_lt_10_mat_4_multiplicative[b, ] <- p_lt_10_vec_4

  }

}

bind_rows(
  tibble(x = tau_seq, y = colMeans(p_lt_10_mat_1_multiplicative), z = 1),
  tibble(x = tau_seq, y = colMeans(p_lt_10_mat_2_multiplicative), z = 2),
  tibble(x = tau_seq, y = colMeans(p_lt_10_mat_3_multiplicative), z = 3),
  tibble(x = tau_seq, y = colMeans(p_lt_10_mat_4_multiplicative), z = 4),
  ) %>%
  ggplot(aes(x = x, y = y, color = factor(z))) +
    geom_line() +
    scale_color_brewer(
      palette = "Set2",
      name = "Statistics",
      labels = c(
        "average difference",
        "median difference",
        "rank difference",
        "log difference"
      )
    ) +
  xlab(TeX("$\\tau$")) +
  ylab(TeX("Power")) +
  theme_minimal()
